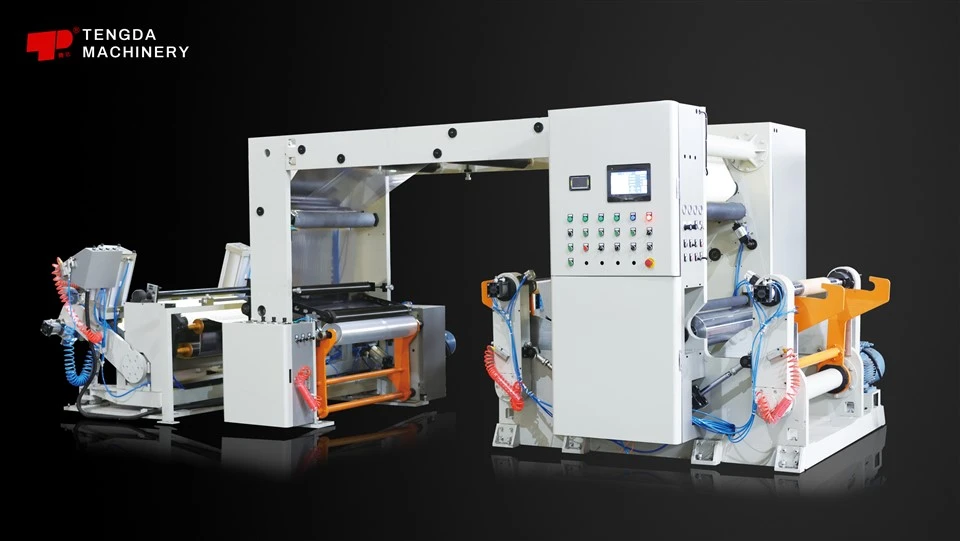

Tipping Ntawv Gantry Ob Chav Ncej Stripping thiab Slitting Tshuab
Ob chav ncej|Siab ceev|600-1000 hli
Substrate: 30-100 gsm ( luam yeeb tipping ntawv, puab liner, mos pob)
80-300gsm (cigarette card paper)
Description
SFQ Series Gantry Ob-ncej Stripping thiab Slitting Tshuab
Ob chav ncej|Siab ceev| 600-1000 hli
Tsis muaj
|
Substrate |
30-100 gsm ( luam yeeb tipping ntawv, sab hauv liner, mos pob) 80-300gsm (cigarette card paper) |
|
Max. unwind ntawv dia |
Φ1200mm / Φ1600mm |
|
Max stripped zaj duab xis rewind dia |
Φ600 hli |
|
Max ntawv rewind dia |
Φ800 hli |
|
Tshem tawm qhov dav |
600-1020 hli |
|
Max slitting ceev |
300m / min |
|
Max stripping ceev |
200m / min |
|
Slitting alignment precision |
Tsawg dua los yog sib npaug rau ±0.10mm |
|
Nto flatness |
Tsawg dua los yog sib npaug rau ±0.15mm |
Paub meej
-Profinet/EtherCAT tswj qhov system: siab heev PLC, servo tsav & converter tswj; -User-phooj ywg HMI; Busbar fais fab mov, txuag hluav taws xob thiab txhim khu kev qha.
-Unwinding nro nws pib tswj los ntawm floating rollers thiab zaus tswj motors.
-Rewinding nro tswj los ntawm zaus tswj motors
-Txoj kev qhia lub vev xaib (EPC / LPC system).
-Pneumatic viav caj npab rau yob loading / unloading ntawm unwind thiab rewind chaw nres tsheb.
- Kev kuaj xyuas chaw taws teeb thiab kev pabcuam tu.
